DW734 Vs. DW735 Vs. DW735x: What Is The Difference?

ZukZik is reader-supported. When you buy through links on our site, we may earn an affiliate commission. Learn more.

Every worker needs a handy tool to make work more efficient. This statement also applies to a woodcutter.

With the use of tools such as a bench planer, many a woodworker will be able to carry out tasks such as evening-out rough surfaces and leveling wood thickness with less effort while being more precise and accurate.

One top advantage of using bench-top wood planners is that they are portable, less expensive than their industrial-grade type. Now, this article itemizes some common bench-top planners you will find in the market today. Typically, there are 3 versions from Dewalt: DW734, DW735, and DW735x

Do check them out

More...

DEWALT Benchtop Planer, Single Speed, 15-Amp, 12-1/2-Inch (DW734)

This is a Dewalt grade wood cutting device which comes handy yet portable.

The DW734 (a 12 ½ -inch thickness planar) comes with size dimensions around 24 x 17 x 21 inches and weighs no more than 80 pounds. Its size and weight enable it to be highly mobile and effective for home use by DIYer’s.

There are no hassles when it comes to transporting or lifting as it comes with two metal handles which slide from the top for convenience in lifting.

Furthermore, this product features a powerful engine motor with 15 amp power with 20,000 rpm (revolutions per minute). The powerful motor gives the bench-planar tool the ability to cut up to a thickness of 12 ½ -inch wide, 6-inches and max of 1/8 inch cut deep by spinning the cutting blades or knives at 10,000 rpm.

Speaking of the cutting knives, DW734 has three razor-sharp, reversible and disposable knives of good durability, delivering 30% of more knife life. The three-knife cutter head provides 96 cuts per inch at the rate of 30,000 cuts per minute.

Also, the machinery comes with a long in-feed and out-feed tables providing 33 ½ -inches of wood material support.

By the right side of the planar is an adjustment dial/turret depth used to set thickness around common sizes of ¼, 1/2, or ¾, inches ensuring every pass you make is timely and accurate.

The feeding table ensures the cleanliness when it comes to the use of the machinery as it allows the attachment of a dust wood to a standing dust collector.

In terms of safety, the machine comes with a four-column carriage lock system (manual-type) which reduces snipe at the end of wood cutting. The manufacturer provides a 3-year limited warranty for this wood planner.


DEWALT Thickness Planer, Two Speed, 13-Inch (DW735)

A bench-top planer that puts a dent on the market as a heavy-duty bench planer.

The DW735 comes as a 13-inch thickness planer with size dimensions 24 x 22 x 19 inches and weighs no less than 90 pounds.  It comes with a 15 amp power motor that can run at a max speed of 20,000 rpm ensuring a more significant area cut.

DW735 motor engine allows planning of wood at 13-inch wide, a 6-inch depth capacity and a maximum depth of 1/8 inch. It features a three-knife cutter head which delivers up to 10,000 rpm speed.

The knives are sharp, replaceable, and reversible with strong durability, which can deliver 30% extra shelf life. Do you know what’s unique?

The DW735 has 2 different optimizing cuts; therefore, it features a dual gearbox for changing feed speeds at 96 and 179 CPI. This dual gear system gives you more considerable control over the machine’s power.

Although the machinery does not feature any feed tables, it comes with a fan-assisted ejection vacuum to remove chips or debris. However, with the fan assisted fan-assisted ejection vacuum, there is an urgent need for a dust collector to reduce environmental accidents.

The Dewalt DW735 features an automatic carriage lock which helps reduce snipes at the end of woodcutting, ensuring smooth and sound cuttings. Also, the product features an extra-large turret depth stop dial. This feature allows a DIYer or professional woodworker to easily go back to the planning thickness they most frequently used.

Also, the DW735 comes with a solidified cast aluminum base which doubles that of any standard type wood planer.

Lastly, the machinery comes with an extra-large material removal gauge that ensures the delivery of accurate cuts on each wood passes. A 3-year limited warranty is assured by the manufacturer.


DEWALT Thickness Planer, Two Speed, 13-Inch (DW735X)

The DW735x is an upgraded version of the standard DW735.

It also comes with a solidified build in that it has size dimensions 24 x 22 x 19- inches and weighs 105 pounds. It is a 13-inch wood planer with an engine motor that runs under a power of 15 amp and a speed of 20,000 rpm.

The DW735x has a three-knife cutter head which is quite sharp and replaceable and also comes out of the box with extra disposable knives for the cutting head. The three-knife cutter is quite durable and offers a cutting speed of 10,000 rpm.

Now just like the DW735x, this wood planer allows planning of wood at 13-inch wide, a 6-inch depth capacity and a maximum depth of 1/8 inch. Dw735x has two optimizing cuts at 96 and 179 CPI. It features a dual gearbox that allows you to alternate between the two cutting speeds giving you more power for control.

One thing that puts the icing on the cake is that the DW735 and DW735x features a double disposal system. It means the product has both in-feed and out-feed tables.

Alongside, the machinery also comes with fan assisted ejection vacuum. The dual system of disposal ensures maximum removal of debris which could clog the machine in the long run.

Also, DW735x features an automatic carriage lock reducing snipes during wood planning. The presence of an extra-large turret allows for automatic adjustment to commonly used thickness settings. The base of the Dewalt DW735x comes with a solid cast aluminum which contributes to its impressive build.


DW734 Vs. DW735 Vs. DW735x: The Difference

Do kindly note that not all wood planners are created equal; some come with different specs or features.

Now when it comes to buying any of the Dewalt wood planers factors such as the blade size, disposal system, type of carriage lock (whether manual or automatic), gear system, size, and more.

Read on!

Features

DW734

DW735

DW735x


Size Dimensions

24 x 17 x 21 inches

24 x 22 x 19 inches

24 x 22 x 19 inches

Weight

80 pounds

90 pounds

107 pounds

Speeds

1

2

2

Disposal System

In /outfeed tables

In /outfeed tables
Chip ejector vacuum

In /outfeed tables
Chip ejector vacuum

Carriage lock

Manual-operated

Automatic

Automatic

Cuts Per Inch (CPI)

96

96 or 179

96 or 179

Width system

12 ½ inch

13 inch

13 inch

Gear

None

Dual gear system

Dual gear system

Extras

Dust hood

Dust adapter and spare knives

Dust adapter, additional knives, and Feed tables

1. DW735 Vs. DW735x

The Dewalt DW735x is just an upgraded version of DW735 - they bought come out of the box with virtually the same features. None the less, there still exist some differences between them.

The DW735x is heavier at a weight of 105 pounds than the DW735 which comes with a weight of 90 pounds. The difference between the wood planers exists in their disposal management.

While DW735 features only a fan-assisted ejector vacuum as a means of disposing wastes from wood, the DW735x features feed tables and chip ejector vacuum, ensuring effective cleaning of the machine.

Lastly, out of the packaging, the DW735x comes with extra disposable knives, unlike the DW735.

2. DW734 Vs. DW735

The DW734 uses a 12 ½ blade size to cut a wide area of 12.5-inches whereas the DW735 makes use of a 13-inch blade.

In terms of portability and mobility, the Dewalt DW734, which weighs 80 pounds, will be the best choice as compared to DW735 with a weight of 90 pounds.

Also, the carriage locking system of both machines differs in that the one of DW735 is automatic while the DW734 is manually operated.

The DW735 features a dual gear system for controlling intermittent speeds of 96 CPI and 179 CPI while it does not exist for DW734 which operates only at 96 CPI.

What Are the Similarities Between DW734, DW735, and DW735x?

On comparing DW734, DW735, and DW735x, there are indeed some similarities.

  • Knife: All three wood planners make use of a 3 knife cutting edge running at 10,000 rpm
  • Motor power: The wood planers use motor power of 15 Amp running at 20,000 rpm
  • Turret depth: The presence of turret depth on all the wood planers allows automatic adjustment to commonly used thickness sizes.

Which One is the Best?

Defining which of the wood planer is the best depends on a matter of choice. Do you want a Dewalt wood planer which efficiently cuts or one with an effective disposal system or is you considering portability? Perhaps, you are looking for a combination of any two properties. The choice is in your hands!

However, I will suggest you go for Dewalt DW735x which puts a dent on other Dewalt wood planer product.

Sale

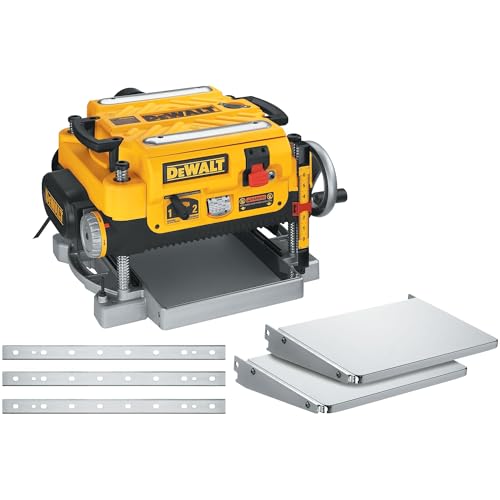

DEWALT Thickness Planer, Two Speed, 13-inch, 15 Amp, 20,000 RPM Motor (DW735X)*
  • Purchase includes one stationary 13" Planer, in/out feed tables with fasteners (attached to the base of the Planer base), extra blades and dust hose adapter. Stand is not included.
  • Three knife cutter head of the thickness planer delivers 30% longer knife life and makes knife change faster and easier
  • Two-speed gear box of the wood planer allows users to change feed speed to optimizing cuts per inch at 96 or 179 CPI
  • Fan-assisted chip ejection vacuums chip off of the cutter head and exhausts them out of the machine
  • 19-3/4-inch cast aluminum base is 2 times more rigid than a standard 10-inch base and folding tables

I would recommend this option as the best due to the following reasons

  • It is more efficient due to its 2-speed system (96 CPI and 179 CPI)
  • It can cut a wider area of thickened wood.
  • And it has a proper disposal waste system with the presence of In/outfeed tables and a chip ejector vacuum.

Dewalt Wood Planer Frequently Asked Questions

1. What Is The Best Way To Maintain My Dewalt Wood Planer?

To keep a wood planer in good condition, you need to put some maintenance culture in check, you need

  • Store properly in a cool, dry place void of air and moisture.
  • Lubricate all metallic parts regularly
  • Ensure all the bolts are well tightened before use.
  • Sharpen cutting edges frequently.

2. How Do I Differentiate Between DW735 And DW735x?

One significant way to differentiate between both wood planers is to check their disposal system.

While DW734 has only a chip ejector vacuum, the DW735x has both in-feed/out-feed and chip ejector vacuum.

3. Can I Use Any Other Blade Other Than the One Recommended By Dewalt?

Using another blade apart from DeWalt-graded ones is not recommendable has it could cause damages and render the warranty void.

Conclusion

The Dewalt wood planer products come with a lot of realistic features that make a critical aspect of woodwork easy.

Just like many types of saw, it also comes in sizes useful for DIYers or professionals as compared to the industrial based wood planers.

Getting one of the products will take off the rigors of smoothing wood for domestic use.

Do feel the difference by getting one today.
